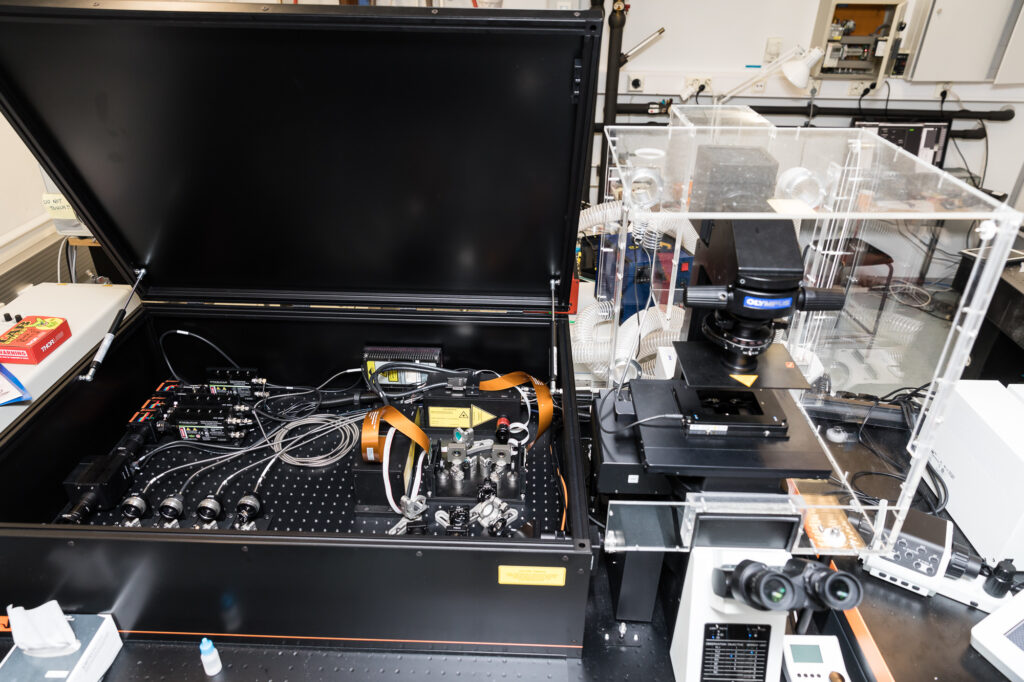

Abberior STED
Specifications
| Manufacturer | Abberior |
|---|---|
| Model | STED/RESOLFT |
| Orientation | other |
| Location | BioCity, 5th floor, BioPhysics room 5086 |
Notes
Abberior STED. Sophisticated and highly flexible open platform that can be modified, extended, and upgraded. Typical resolution is ~40 nm in XY and ~150 nm in Z using Easy3D STED. Easy3D uses a programmable spatial light modulator (SLM) to create 2D/3D STED phase patterns. Easy3D with adaptive optics enables deep imaging up to 75 µm into cleared tissue with a 100x oil objective. RESCue STED is available for live super-resolution imaging with reduced light dose.
Modules
-
Easy3D Sted
Programmable SLM-based module for 2D/3D STED phase pattern generation.
-
Adaptive Optics
Supports deep imaging up to 75 u00b5m into cleared tissue with 100x oil objective.
-
Rescue Sted
Reduction of state transition cycles mode for super-resolution live imaging with lower light dose.
Acquisition Software
Name: Abberior Imspector
Type: Point_Scanning
STED point scanning configuration.
| Type | Model | Wavelength | Power |
|---|---|---|---|
| Laser | 488 nm | 488 nm | |
| Laser | 561 nm | 561 nm | |
| Laser | 640 nm | 640 nm | |
| Laser | 580 nm | 580 nm | |
| Laser | 775 nm | 775 nm |
| Type | Manufacturer | Model |
|---|---|---|
| Pmt | Photomultiplier Tube | |
| Apd | Avalanche Photodiode | |
| Ccd | Monochrome CCD camera |
