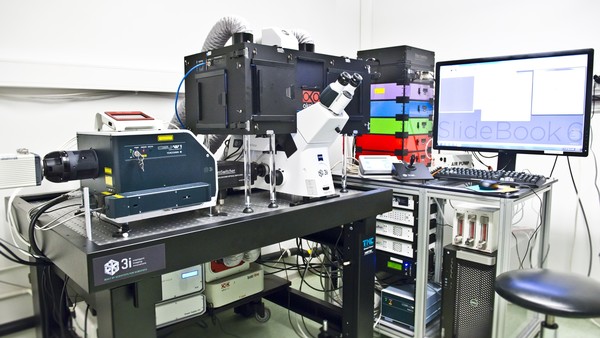

3i CSU-W1 Spinning Disk

    Specifications
    Manufacturer 3i / Zeiss
    Model Marianas CSU-W1 Spinning Disk Confocal
    Orientation inverted
    Location BioCity, 5th floor, room 5149
    Notes
    Confocal spinning-disk microscope (inverted) with 50 µm pinholes. Optimized for fast, gentle imaging of live samples and large fields of view. Imaging modes: Confocal (spinning disk), Live-cell time-lapse, FRAP, Photoactivation.
    Modules
    • Frap
      FRAP/Photoactivation laser module (for bleaching and activation)
    • Piezo Z Stage
      ASI piezo stage (300 u00b5m travel)
    • Hardware Autofocus
      Definite Focus
    • Incubation
      Okolab environment chamber with temperature control
    Acquisition Software

    Name: 3i SlideBook

    Version: 6

    Type: Spinning_Disk

    Yokogawa CSU-W1 with 50 u00b5m pinhole disk

    Type Model Wavelength Power
    Laser 405 nm 405 nm 100 mW
    Laser 488 nm 488 nm 150 mW
    Laser 561 nm 561 nm 100 mW
    Laser 640 nm 640 nm 100 mW
    Laser 730 nm 730 nm 40 mW

    Type Manufacturer Model
    Scmos Hamamatsu Orca Flash4.0
    Emccd Photometrics Evolve
