Zeiss LSM780 – retired 2021

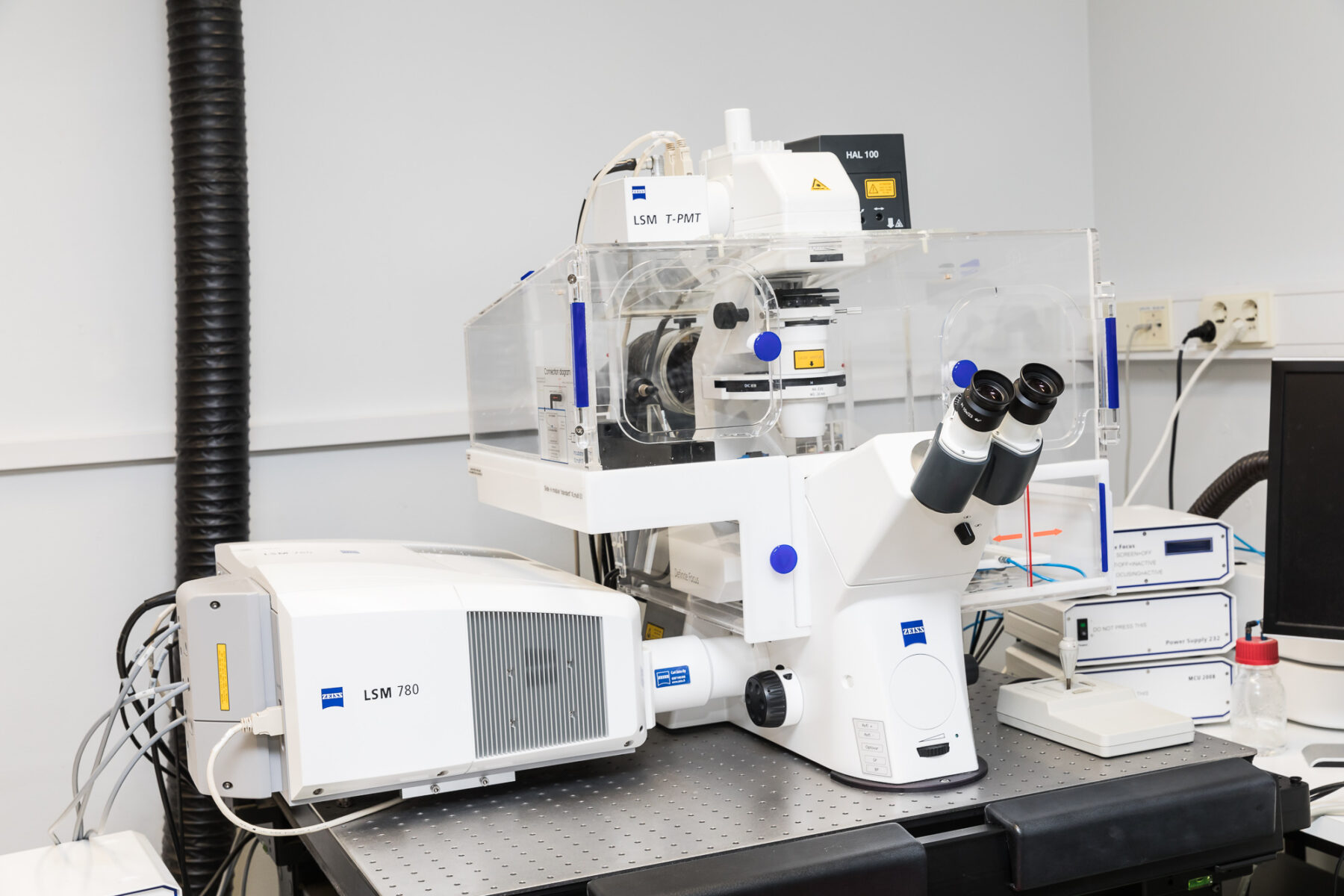

The Zeiss LSM780 laser scanning confocal microscope is a versatile system for all cell and tissue imaging experiments. The instrument has a CO2/humidity/temperature controlled incubator for live cell imaging. Available modules include FRAP, FRET, Multiple time-series and FCS. There is an extra sensitive spectral GaAsP detector for FCS and FCCS and a cooled PMT for more sensitive detection on red range. Also, anisotrophy measurements are possible.
10x Zeiss EC Plan-Neofluar
• Numerical Aperture: 0.3
• Working Distance: 5.2 mm
• Immersion: Without immersion
20x Zeiss Plan-Apochromat
• Numerical Aperture: 0.8
• Working Distance: 0.55 mm
• Immersion: Without immersion
40x Zeiss C-Apochromat
• Numerical Aperture: 1.2
• Working Distance: 0.62 mm at coverglass 0.17 mm
• Immersion: Water
63x Zeiss C-Apochromat
• Numerical Aperture: 1.2
• Working Distance: 0.28 mm
• Immersion: Water
100x α Plan-Apochromat
• Numerical Aperture: 1.4
• Working Distance: 0.11 mm
• Immersion: Oil
- 405nm - Diode
- 458nm - Argon
- 488nm - Argon
- 514nm - Argon
- 543nm - HeNe
- 633nm - HeNe
Ch1, Ch2 and the 32-channel array GaAsP detectors have tunable filters that operate between 371-740nm.
- PMT - Ch1
- Cooled PMT - Ch2
- 32-channel Array GaAsP element
- Transmitted light PMT
- ZEN 2.3 SP1 black edition
- Piezo stage
- Definite focus
- Environment chamber
- Temperature control
- Heated stage inserts
